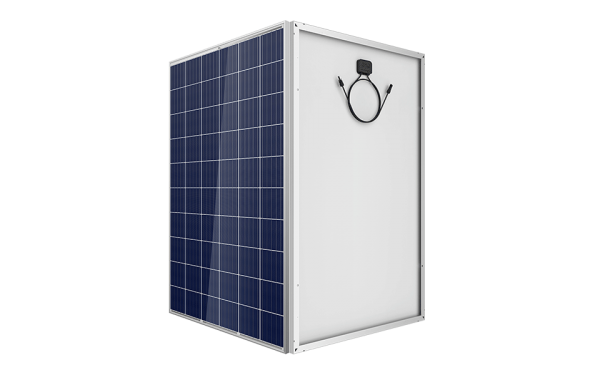

TSM-PD05

Trina Solar TSM-PD05 is a series of high-efficiency multicrystalline solar modules, commonly known as part of the “Honey” product line. These 60-cell panels are designed for versatility, suitable for residential rooftops, commercial installations, and utility-scale projects.

Technical Specifications

According to official datasheets from Trina Solar, the TSM-PD05 series features the following mechanical and electrical characteristics:

• Power Output: Ranges typically from 255W to 285W, depending on the specific model (e.g., TSM-270 PD05).
• Efficiency: Delivers a maximum module efficiency of up to 17.4%.
• Dimensions: Measures 1650 x 992 x 35 mm (approx. 65.0 x 39.1 x 1.38 inches).
• Weight: Weighs 18.6 kg (41 lbs).
• Construction: Features 3.2 mm anti-reflective (AR) coated tempered glass and a silver or black anodised aluminium alloy frame.
• Connectors: Utilises industry-standard MC4 compatible connectors.

Durability & Reliability

The series is engineered to withstand harsh environmental conditions:

• Load Resistance: Certified to handle a snow load of up to 5400 Pa and a wind load of 2400 Pa.
• Impact Resistance: Tested to resist hail stones up to 35 mm in diameter at speeds of 97 km/h.
• Protection: The junction box is typically rated IP 67 or IP 68, providing high-level protection against dust and water ingress.

Warranty Information

Trina Solar provides long-term assurance for the TSM-PD05 series:

• Product Warranty: Includes a 10-year product workmanship warranty.
• Performance Warranty: Features a 25-year linear power warranty, ensuring the panel maintains at least 80% of its rated power after 25 years.
