TSM-NEG9R.28

Key Technical Characteristics

Module Power Range: 425 Wp – 460 Wp (e.g., 430W, 435W, 440W, 445W, 450W, 460W).
Efficiency: Up to 23.0% module efficiency.
Cell Type: N-type i-TOPCon, Monocrystalline.
Configuration: 144 half-cut cells.
Dual-Glass Design: 1.6 mm heat-strengthened glass on both front and back.
Dimensions: 1762 × 1134 × 30 mm.
Weight: 21.0 kg.
Frame: 30 mm Anodized Aluminium Alloy, Black.

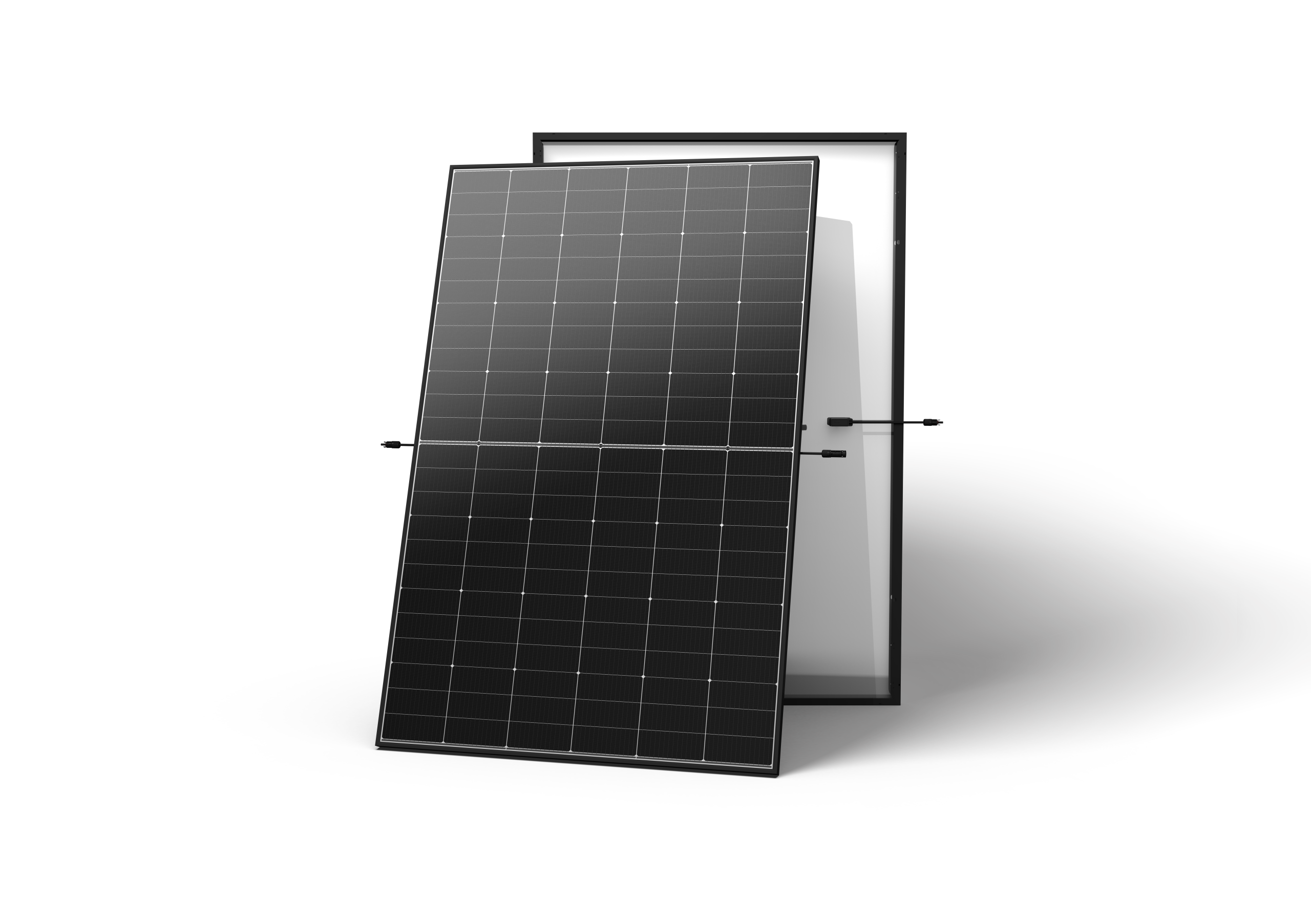

The Trina Solar Vertex S+ TSM-NEG9R.28 is a high-performance, dual-glass, N-type i-TOPCon monocrystalline solar module designed for residential and commercial (C&I) rooftops. It offers power outputs ranging from 425W to 460W+ and efficiency up to 23.0%.

Key Technical Features

Technology: N-type i-TOPCon cells with high-density interconnect technology.
Design: Dual-glass (glass-glass) structure, with 1.6mm front and 1.6mm back heat-strengthened glass, providing superior durability compared to traditional backsheet modules.
Aesthetics: Black frame (BFR) with a white backsheet/glass for a sleek, modern look.
Degradation & Warranty: Offers exceptionally low degradation—1% in the first year and 0.4% annual degradation thereafter. It typically comes with a 25-year product warranty and a 30-year power warranty.
Durability: High mechanical resistance, capable of withstanding 5400 Pa snow load and 4000 Pa wind load.
